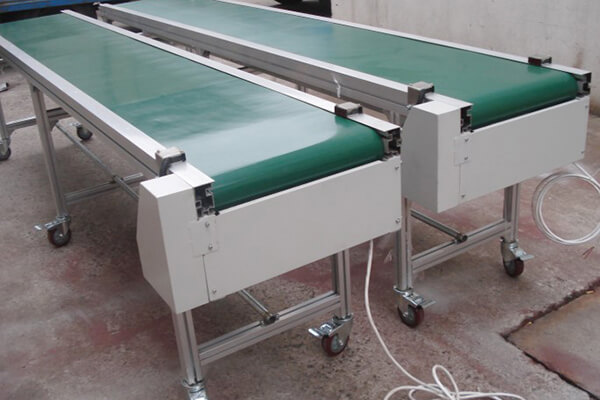

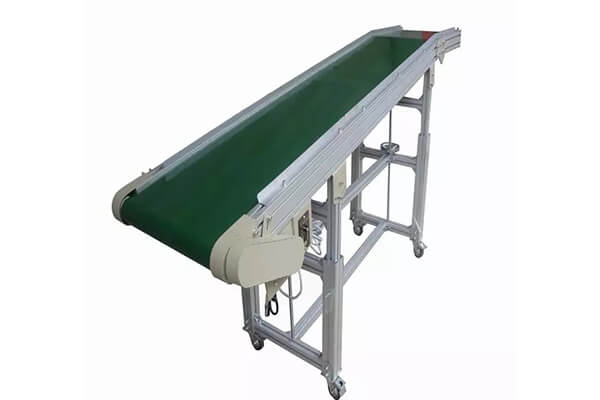

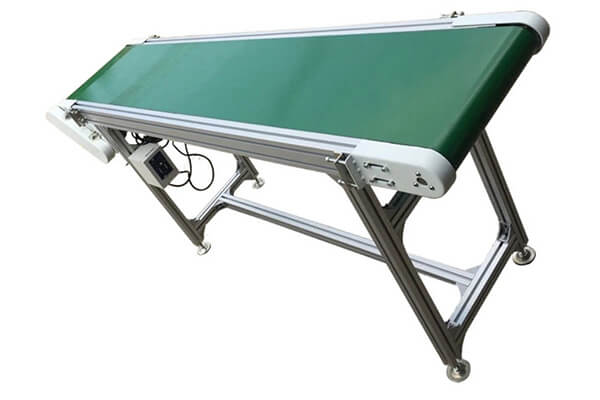

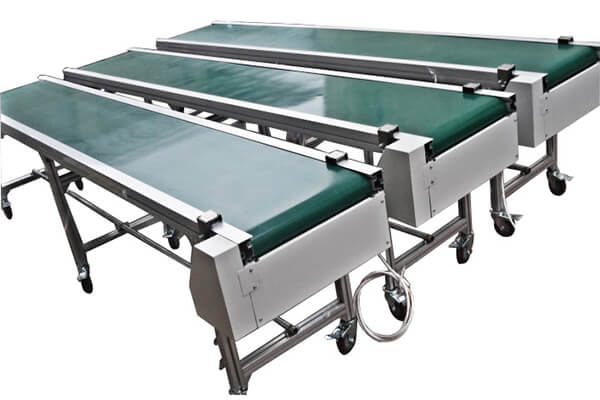

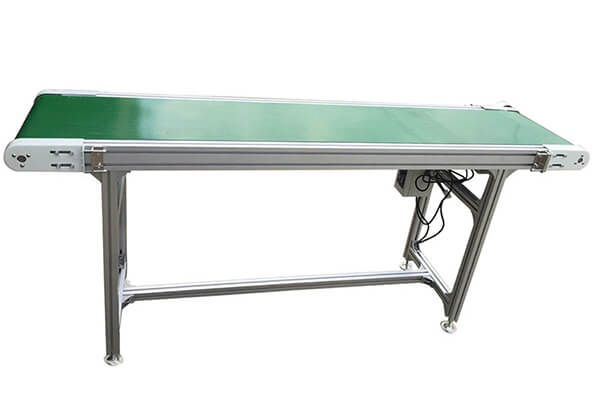

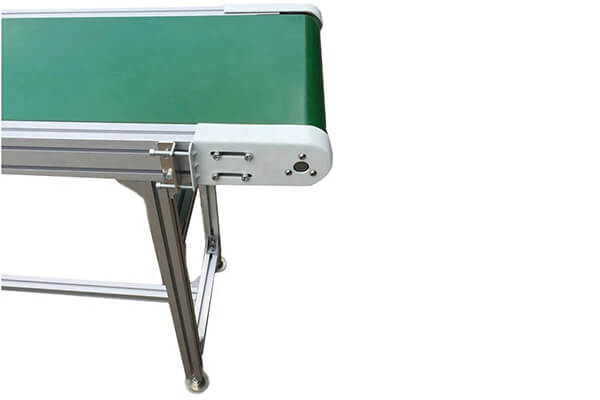

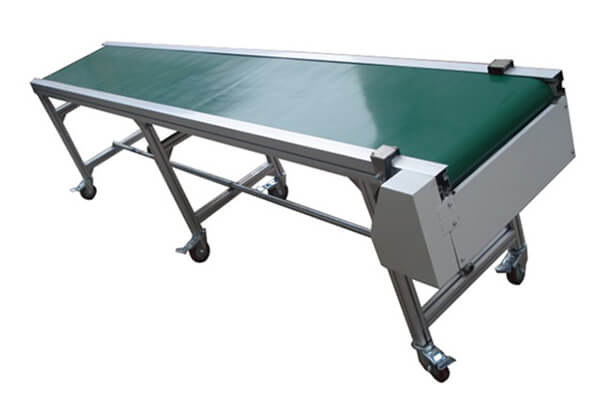

Aluminum frame belt conveyor
Share This Product:
  • Description

PVC belt conveyor of aluminum frame- The belt conveyor is very widely used in many industrial fields, especially the aluminum standard frame type  belt conveyor, it is very simile with strong structure and good looking appearance. Our aluminum frame belt conveyor is adopts the advanced Japanese technology manufacturing, and very popular among the different industries.
The aluminum fame belt conveyor is medium duty type belt conveyor to used widely. The belt is usually adopts PVC material with different thickness from 1mm-5mm, the color is green, blue, white, etc. Many food industries adopts white PVC with food grade requirement, and use stainless steel frame instead of the aluminum. But  the aluminum is widely welcomed with light weight, without painting, beautiful looking, easy cutting and installing.


Convey loads of Cartons, Totes, Fixtures, Cardboard Boxes
Non-Contact Accumulation
Zone Based
Unit loads conveyed long distances
Pallet loads with bottoms not suitable for roller or chain conveyor
90°, 180° curves

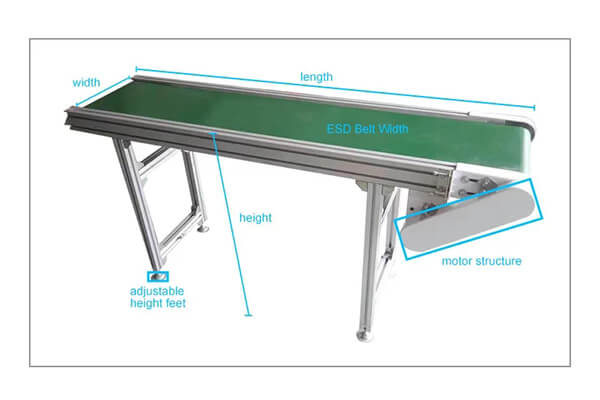

Technical parameters

Input Voltage:



8M, 10M, 12M,   14M,16M, 18M, 20M, 24M, 30M etc.

Belt Width:

30cm, 40cm, 50cm, 60cm, 70cm,    etc.

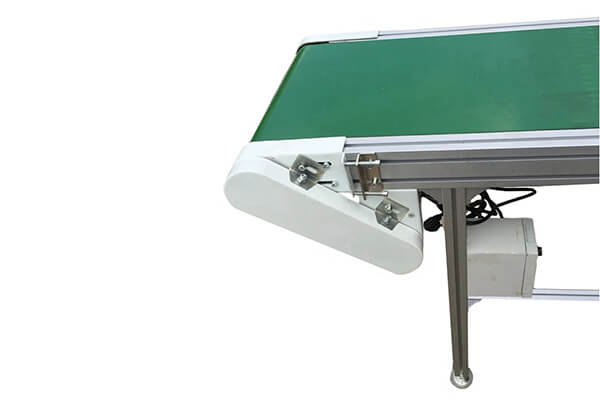

aluminum frame, active foot   rollers, sockets, speed device, motor;

Load Capacity:

1-45kg(depends on different   lengths);


customzied wooden case(need be   quoted alone);
