Belt conveyors are an excellent choice for an inexpensive and simple method of moving products from one point to another. Because of the simplicity of the flat, moving belt, they can be used to move a variety of product sizes, shapes and weights effectively for long lengths with a single drive. Belt Conveyors are also a great option to move products through elevations.

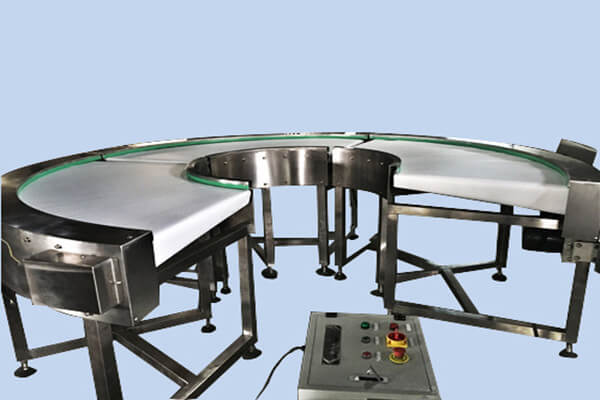

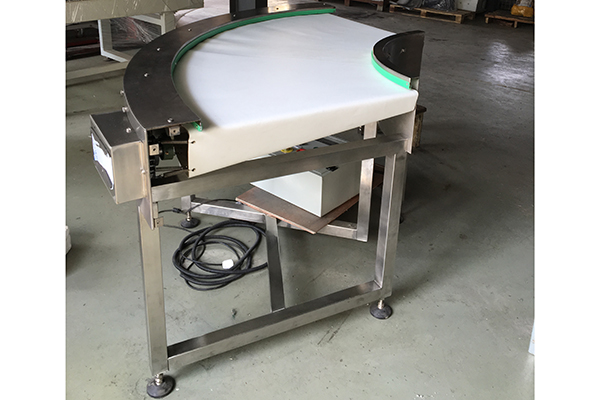

Product Name | 90degree curve multi-purpose belt conveyor system |
Frame material | Stainless steel, carbon steel |
Belt material | Canvas, rubber, PVC, PU |
Belt color | Customized |
Belt width | 300-1200mm |
Curve degree | 45, 60, 90, 180 |
Max speed | 30m/min |
Motor | Speed-regulated motor |
Driving mode | Head driving |
Load capacity | 30-50kg/m |
Power | 0.4kw, 0.75kw, 1.5kw |
Character of belt conveyor
* Steady conveying, adjustable speed as your need.
* Oil resistant. corrosion resistance. anti-static
* Corrosion resistant.
* Antistatic and other special requirements for the transportation of materials.
* Use special food grade conveyor belt, meet the requirements of various industries.
* It has low noisy which is suitable for quiet work environment.
* Simple structure,convenient maintenance.
* Less energy consumption and low cost.
* No sharp corners or danger to staff, and you can clean the belt freely with water.
