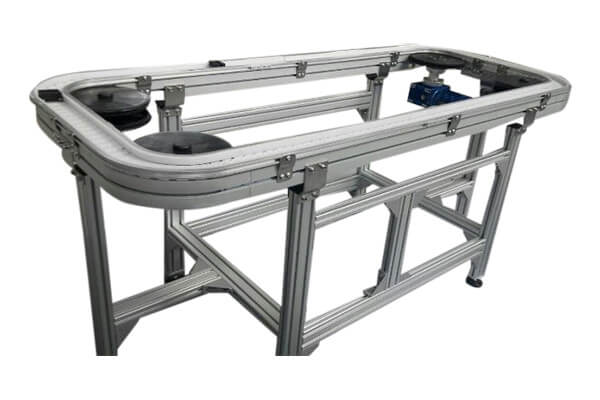

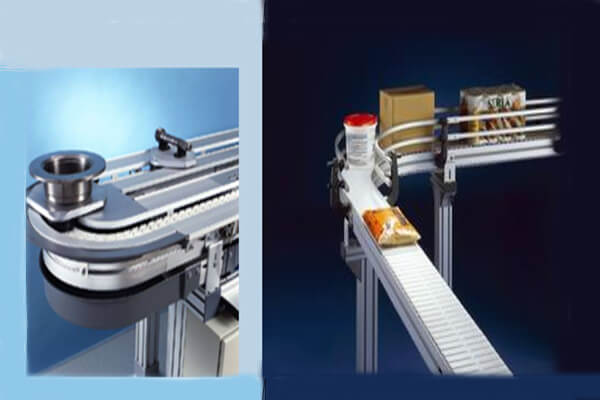

Curve flexible conveyor
Share This Product:
  • Description

Feature

It is a new type  material Pom, widely used in food , beverage, hardware, personal care products, auto parts packing lines.

1.Smooth surface and transition,small friction
2.A wide variety of specifications, according to the transport materials and process
3.The chain can be washed or bubble in the water directly
4.Flexible equipment layout,horizontal, tilting and turning can be done on a conveyor line
5.The device structure is simple, smooth operation, easy maintenance

Main Advantage

1.Modular system, transformation easy
2.Good wear resistance, long time use
3.Small footprint, saving space
4.Improve productivity, high efficiency
5.Low wear, green

Technical parameters

Chain material

POM

Profile material

Aluminum

Motor

Made in China,Taiwan   brand

Voltage

110V/220V/380V/415V

Length and width

According to   customer request

Side guide rail

HDPE+Aluminum

Chain pitch

38.1mm

Curve radius

650mm

Speed

About   30m/min,adjustable

Delivery goods width

10-200mm

Delivery goods   height

50-200mm

Capacity

300-1000pcs/min
