1. The Scope of Application

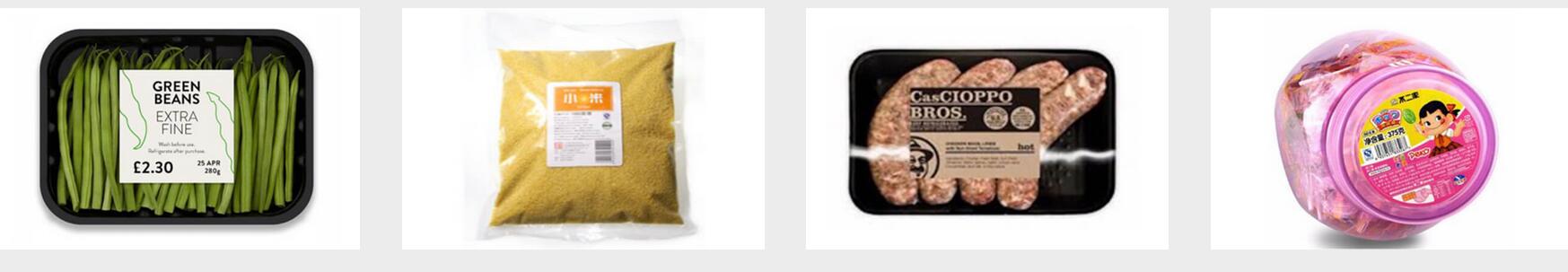

The top surface labeling machine suit for different kinds products, such as bag, box ,carton, cap, container and so on ;
(P.S. our labeling machine can be designed according to your needs)
2. Device Characteristic
1.Control system: use SIEMENS brand PLC control system, with high stable operation and extremely low failure rate;
2. Operation system: SIEMENS 7 inch touch screen, directly visual interface easy operation, rich with the help function and fault disply function ;
3. Check system: Use German LEUZE check label sensor, automatic check label station, stable and convenient don't have much higher requirement for worker
4. Send label system: servo moor control system, stable with high speed;
5. Alarm function: such as label spill, label broken or other malfunction during machine working all will alarm and stop working.
6. Machine Material: machine and spare parts all use material S304 stainless steel and anodized senior aluminum alloy,with high corrosion resistance and never rust;
7. Low voltage circuit all use the German Schneider brand;
Technical parameters
Capacity (pcs/min) | 20-230 |
Driving Mode | servo motor control system |
Labeling accuracy | ±1mm |
Labeling Speed(m/min) | ≤35 |
Label Specification | adhesive sticker, transparent or opaque |
Suit bottle size | Can customized |
Suit label size | Height 20-160mm Length 25-300mm |
The inner diameter or label roll | 76mm(min) |
The outer diameter of label roll | 350mm(max) |
Power | 550w |
Voltage | can customized, 110V/220V/380V |
Machine size | 1800x80x1500mm |
No | Name | Model | Unit | Brand |
1 | PLC control system | 6ES7212-1A | 1 set | SIEMENS |
2 | Touch screen | 6AV6648-01A | 1 set | SIEMENS |
3 |
Photoelectric sensor | FS-N18N | 1Set | Japan KEYENCE |
4 |
Photoelectricsensor | GS61 | 1 Set | German Leuze |
5 | Drive | 2003-CSD3-08BX2 | 1 Set | America AB |
6 | Main transport motor | 90W1:30 | 1 set | German JSCC |
7 | Speed Controller | 40-90W | 1 set | German JSCC |
