1.The Scope of Application:
The model Labeling machine suit for different kinds products that need labeling on front and back sides . Labeing engine use German Avery brand, also can suit for round bottle labeling wrap around.

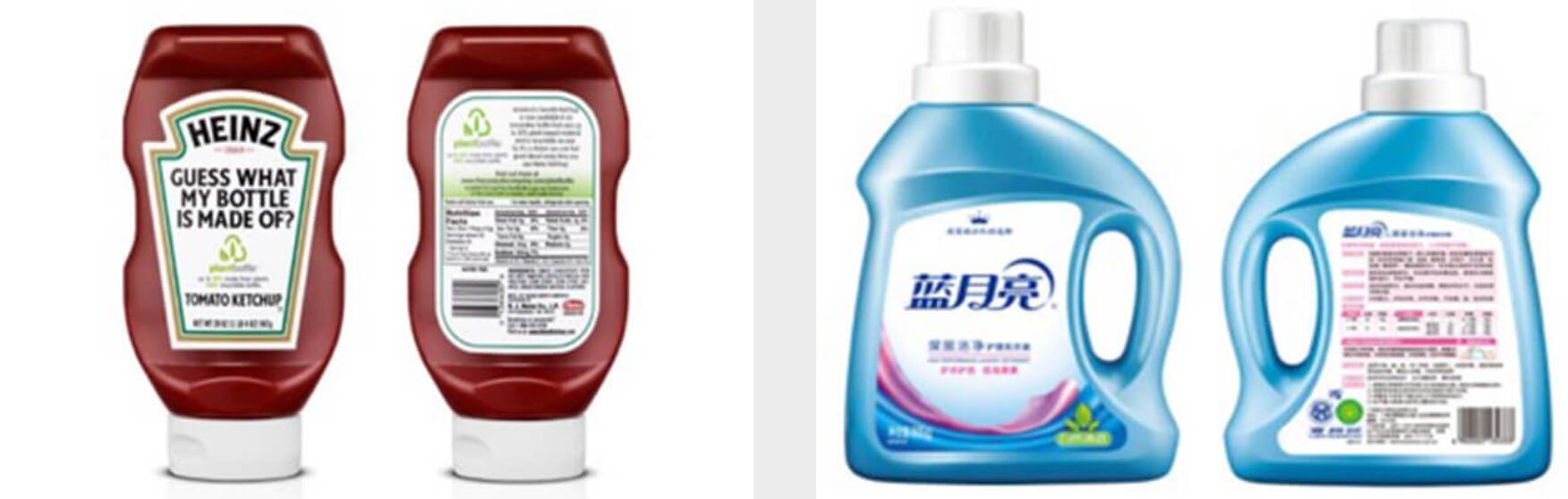

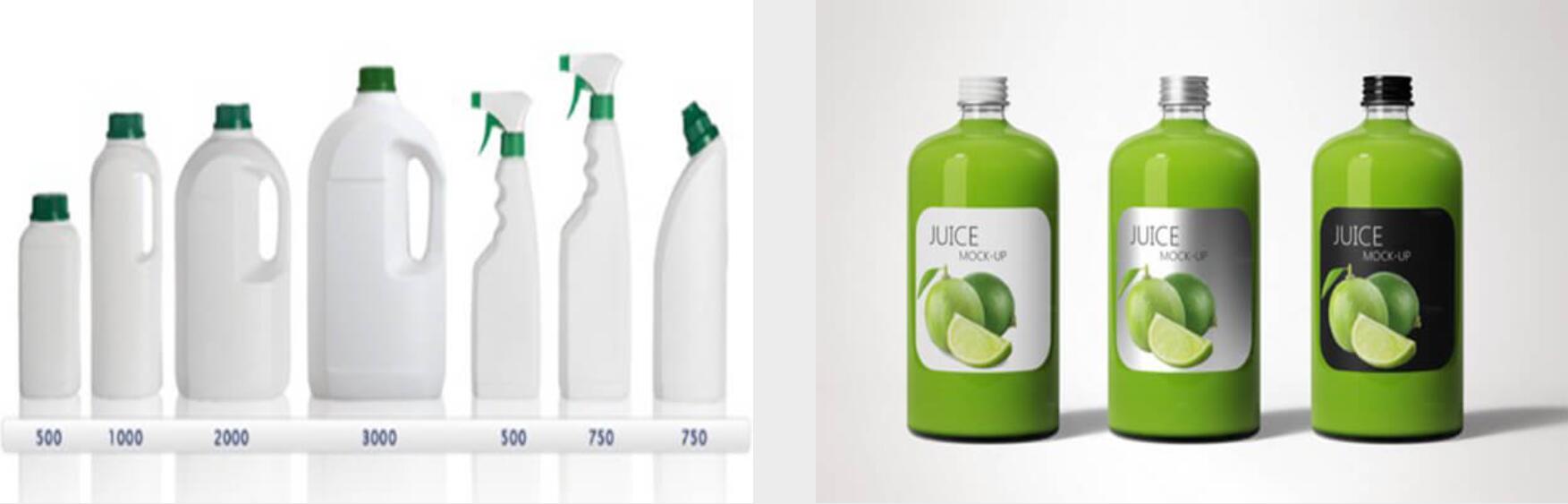

Follow with some labeling sampels for ref :
2. Device Characteristics:
Electrical cabinet,Conveying mechanism,Separate bottle device,Press bottle device,Roll label device,Brush label device,1# and 2# labeling engines,Operation system and control system
3. Device Advantages:
1) Control system: American AB PLC control system, with high stable operation and extremely low failure rate.
2) Operation system: 10 inch touch screen, directly visual interface easy operation ,with Chinese and English two kinds language, also rich with the help function and fault display function.
3) Check system:Use German LEUZE check label sensor, automatic check label station, stable and convenient don’t have much higher requirement for the worker.
4) Alarm function: such as label spill, label broken or other malfunction during machine working all will alarm and stop working.
5) Machine Material:The machine and spare parts all use material S304 stainless steel and anodized senior aluminum alloy,with high corrosion resistance and never rust.
6) Low voltage circuit all use the German Schneider brand.
Capacity (pcs/min) | 50-230 |
Driving Mode | German Avery Labeling engine |
Labeling accuracy | ±1mm |
Labeling Speed(m/min) | ≤35 |
Label Specification | adhesive sticker, transparent or opaque |
Suit bottle size | Can customized |
Suit label size | Height 20-160mm Length 25-300mm |
The inner diameter or label roll | 76mm(min) |
The outer diameter of label roll | 350mm(max) |
Power | 1000w |
Voltage | can customized, 110V/220V/380V |
Machine size | 3000x1350x1500mm |
No | Name | Model | Unit | Brand |
1 | PLC control system | 288-1ST20-OAAO | 1 set | American AB |
2 | Touch-screen | 648-OCC11-3AXO | piece | mcgs |
3 | Driver | ALS104/206 | 2set | German Avery |
4 | Labeling engine | ALS104/206 | 2set | German Avery |
5 | Inverter | 22F-A2P5N103 | 2set | Delta |
6 |
photoelectric sensor | FS-N18N | 1Set | Japan KEYENCE |
7 |
Photoelectric sensor | GS61/6.2 | 2sets | German Leuze |
Photoelectric sensor (Check opaque and transparent label） | LRD2100 | 2 sets | USA Lion | |
8 | Main transport motor | M2BAX-0.55KW-4P-B14 | 1piece |
Switzerland |
9 | Separate Bottle Motor | 40W 1:30 | 2sets |
German |
