line&Auto carton sealer/ case taper machines
Share This Product:
  • Description

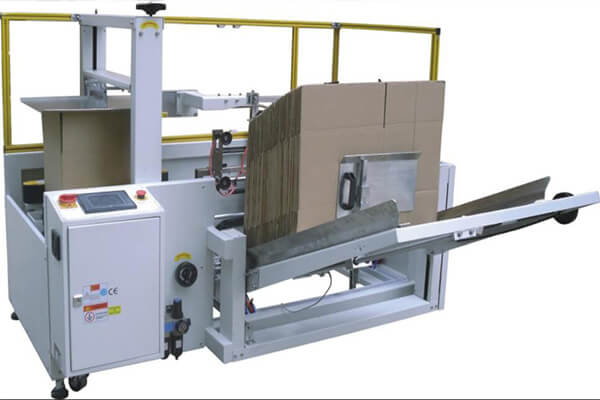

Product Name:Carton erector and sealer packaging line
1. Using international advanced technology and imported components, electrical components and pneumatic components.
2. Vertical storage board, and can be added at any time without downtime.
3. Suitable for the same kind of carton size packaging at the same time, if you need to change the carton size, you can manually adjust it, the time required 1-2 minutes.
4. Rational design, simultaneous suction molding, simultaneous molding of the bottom and the back cover.
5. Lightweight, precise and durable performance, no vibration during operation, stable operation for long time, high efficiency.
6. Can be used as a stand-alone machine or in combination with automatic packaging lines.

                    Model

                    KP-KX03

                    Production speed

                    12ctns/min

                    Power supply

                    110V/220V, 1phase, 50-60HZ 200W

                    Carton size(mm)

                    L250-450xW150-400xH100-400

                    Air compressing

                    6kg/cm³

                    Air comsumption

                    450NL/MIN

                    Machine dimension

                    L2000xW1900xH1450mm

                    Machine weight

                    450KG

                    Adhesive tape width

                    48/60/75MM


Product Name: auto carton sealer/ case taper machines
Application:

case sealer is especially applied to continuously seal cartons in different sizes, which is used in the fields of domestic electrical appliance, foodstuffs, general merchandise, medicine and chemical industries.


Packing   material

plastic

Max   packager size

500*500mm

Packing   speed

1000pcs/h

Mini   packager size

(Width)80*100mm(Height)

Product   name

case   taping machine

Dimension

1580*740*1330mm
