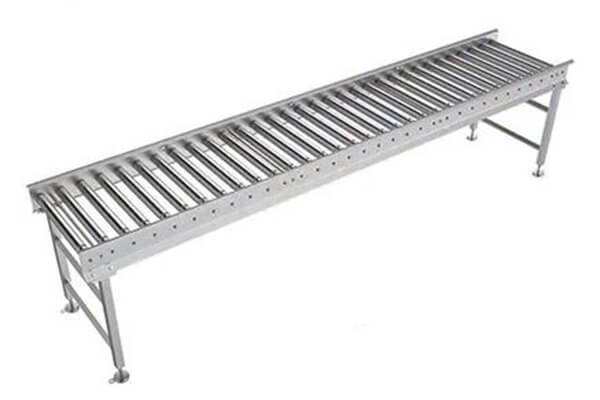

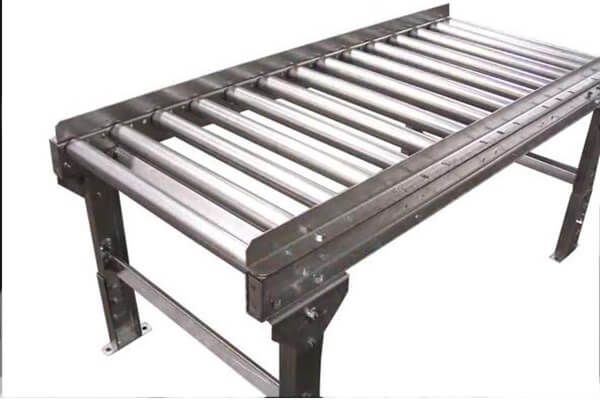

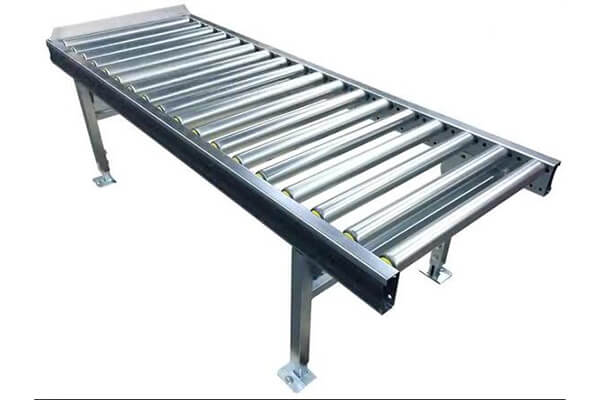

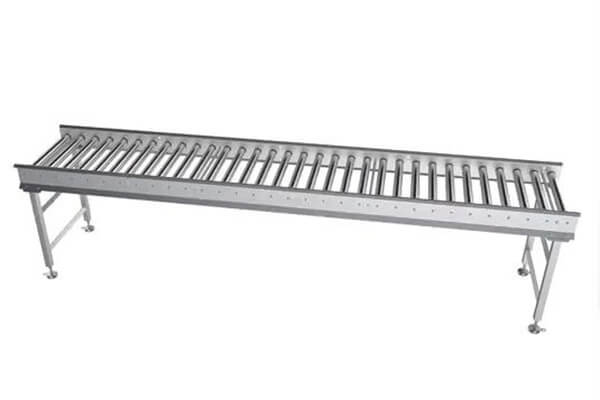

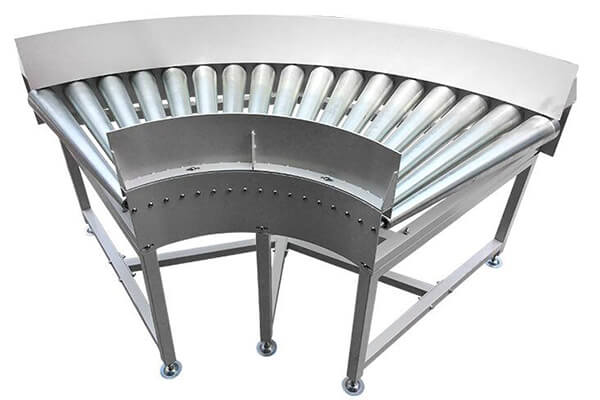

Gravity Roller Conveyor is one of the most common conveyors applied in conveying flat-base items like cases,boxes and pallets.Small,soft or irregular items are supposed to be put on trays or other flat containers.This kind of conveyor is characterized with large and efficient distribution,convenient connection to other lines and easy maintenance.
In addition,it can be applied to such situations as production-packing line,temporary conveying line and goods distribution line.It satisfies the easy,quick and efficient goods delivery.
It intends to:
* Increase the efficiency of material handling work
* Decrease the intensity of labor, and number of work force
* Protect items from manual impact damages
* Save overall cost for modern enterprise management
Technical parameters
Technical spec. | Capacity | 50 kg/m or customized |
Voltage | 380V | |
Conveyor speed | 10-50m/min | |
Environmental temperature | -30 °C ~ 55 °C | |
Gradient | 0 ~3 degree | |
Roller Dia. | 50mm or customized | |
Driven method | Motorized roller/motor | |
Driven type | O shape belt/ wedge belt / sprocket chain | |
Length/height | Customized (safety guard is available) | |
Width | 600mm/800mm/1000mm/1200mm | |
Installation way | Fixed/Mobile |
Features
Large, continuous and flexible in material transferring, easy to maintain, durable.
